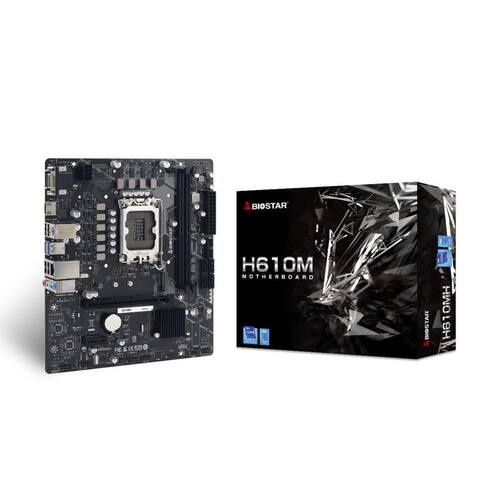

Placa Mãe Biostar H610Mh Intel Lga 1700 Ddr4

Marca: biostar
Modelo: h610mh
Chipset
Intel H610
Processadores Suportados
Support for 12th/ 13th Generation Intel Core tm i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
Para ter acesso a lista de processadores suportados, acesso o site do fabricante
Memória
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile XMP memory modules
Vídeo Integrado
Supports DX12
Supports HDCP
Storage
-- Total supports 1x M.2 socket and 4 x SATA III 6Gb/s ports
4 x SATA III Connector 6Gb/s
1 x M.2 M Key Socket M2PCIEG332G SATA :
Supports M.2 Type 2240 /2260 /2280 SSD module
Supports PCI-E 3.0 x4 32Gb/s & SATA SSD
Rede
Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Áudio
ALC897
7.1 Channels, High Definition Audio
USB 4 x USB 3.2 Gen1 ports 2 on rear I/Os and 2 via internal headers
8 x USB 2.0 ports 4 on rear I/Os and 4 via internal headers

Slots de Expansão
1x PCIe 3.0 x1 Slot
1x PCIe 4.0 x16 Slot
Conectores Traseiros
1 x PS/2 Keyboard/Mouse Port
1 x HDMI
1 x VGA Port
2 x USB 3.2 Gen1 ports
4 x USB 2.0 ports
1 x LAN port
3 x Audio Jack

Conectores Internos
4 x SATA III Connectors 6Gb/s
2 x USB 2.0 Headers each header supports 2 USB 2.0 ports
1 x USB 3.2 Gen1 Header each header supports 2 USB 3.2 Gen1 ports
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
Dimensões
Micro ATX Form Factor Dimension: 20.8cm x 23.6cm W x L
Sistema Suportado
Supports Windows 10 64bit / 11 64bit
biostar reserves the right to add or remove support for any OS with or without notice.
Softwares
Bullguard
Acessórios
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
Garantia
- 12 meses
Ean: 4712960685741
